First-class in Weldments
Weldment and Weldments Key Takeaways
Expert TIG and orbital welding for stainless steel and thermoplastics from ⅛” to 6″, built for purity and precision.
AWS-certified welders operate in Class 100 cleanrooms to ensure clean, consistent results.
CAD modeling and process planning ensure accurate, repeatable fabrication.
Helium leak testing verifies weld strength and system integrity.
In-house production reduces waste, rework, and lead times for cost-effective results.
Ongoing support includes inspection, repair, and upgrades for long-term performance.
Axenics employs some of the nation’s most skilled TIG and orbital welding professionals. All of our welders are thoroughly trained and certified to ensure top-quality results. Our technicians handle a wide range of custom fabrications for stainless steel and various types of plastic weldments, such as valves, solenoids, pneumatics, piping assemblies, and more. Our certified welders can create high-quality weldments in sizes from ⅛-inch up to 6 inches in diameter.
What is a weldment?
A weldment refers to a structure or assembly created by welding multiple components together. It involves joining two or more separate metal pieces by melting and fusing them, often using heat, pressure, or both. This process results in a strong and permanent bond between the parts, forming a single integrated unit.
Weldments can range from simple assemblies to complex structures. Weldments play a crucial role in fabricating large and intricate metal structures efficiently and cost-effectively, offering versatility and customization options to meet specific design requirements and performance standards.
Our team of certified welders is capable of producing weldments ranging from ⅛” to 6” in diameter and larger. We have developed highly effective methods to create weldments in various shapes and sizes, meeting the specific needs and challenges of a wide range of customers.
TIG welding of stainless steel can be performed both with and without the use of filler metal, making it a versatile welding method suitable for various industries. There are two main categories of TIG welding, resulting in two different types of weldments.
Weldment Types
Autogenous weldments are produced by joining metal surfaces without the use of a filler metal. This method is often used when welding carbon and stainless steels due to their low heat-conductivity properties. It is also commonly used for relatively small welds. It is easiest to perform autogenous welding when the thickness of the metals to be joined is less than 5mm, though it can be done with thicker metals in some cases.
Homogeneous weldments are produced using a filler metal to join two metals together. When using this method, the filler material used will be the same as the base metal.
Heterogeneous weldments are produced when a filler material is used that differs from the base material. Soldering and brazing are examples of this type of joining process.
Weld Styles
Many styles of welds can be performed depending on what you’re trying to accomplish:
Autogenous
The autogenous method of welding is ideal for carbon and stainless steels due to their low heat conductivity and is used for relatively small welds. This type of welding service is performed by fusing two surfaces without the use of filler metal.
Freehand
Freehand welding is relatively easy to perform and is usually used to create flat, square, and small weldments. Creating consistency with this method, however, can be difficult.
Cup walking
Cup walking is an ideal welding method for use with larger-diameter piping, but it is a challenging method to master. The welds created using this method are consistent. The type of weldment you are trying to produce will determine whether you can use the cup walking technique.
Complex Geometries in Weldment Design
We take pride in our ability to tackle even the most challenging geometric designs in weldments. Whether it’s crafting detailed multi-axis manifolds or building precision frames, our TIG and orbital welding techniques allow us to create structures that surpass traditional joining methods. Thanks to digital modeling and precise fixturing, we ensure perfect alignment and dimensional accuracy throughout the welding process. The result is a consistently high-quality weldment with clean seams and reliable performance.
Cost-Effectiveness Through Smart Weldment Fabrication
A well-designed weldment can significantly save both time and money. We’re all about minimizing rework, scrap, and downtime by refining our welding and fabrication techniques. By reducing the number of joints, fittings, and connections, our weldments streamline the assembly process and help cut overall production costs. This means our clients benefit from faster lead times, consistent quality, and smooth project delivery, all while maintaining durability and precision.
Reducing Material Waste with Precision Weldments
We’ve fine-tuned our weldment process to maximize efficiency. By combining CNC bending with orbital welding, we reduce the need for extra cuts and connections, saving both time and resources. Our engineers carefully analyze each design to eliminate unnecessary components and make the most of our materials. This thoughtful approach not only aligns with our sustainability goals but also ensures we uphold the structural and functional integrity required for high-purity manufacturing environments.
Strength and Durability for Demanding Applications
We pride ourselves on creating weldments that are built to endure. Our talented welders pay meticulous attention to heat input and alignment, ensuring that every joint forms a robust and uniform bond. We put each weldment through rigorous testing to ensure stability under high pressure, vacuum, and thermal stress. These high standards make our work ideal for industries like semiconductor and medical, where long-term performance and reliability are essential.
Comprehensive Turn-Key Solutions for Weldments
Axenics offers all-inclusive turn-key weldment solutions that guide you from the initial design phase right through to final testing. Our dedicated in-house teams handle everything – prototyping, welding, assembly, and inspection – all under one roof. This integrated approach ensures consistent results, faster delivery, and fewer coordination hassles. Whether you need a single prototype or a complete production run, our turn-key capabilities promise reliable and efficient project outcomes.
Precision-Engineered Welded Joints
The quality of our weldments is directly tied to the precision of their joints. The certified welders at Axenics employ advanced TIG and orbital techniques to achieve full penetration with minimal distortion. Each joint is meticulously inspected to verify its strength, cleanliness, and accuracy resulting in a weldment that consistently excels in high-purity and high-pressure systems.
Expert Welding and Assembly Services
We take pride in our expert welding and assembly services. Our dedicated teams work hand in hand to transform individual components into fully assembled, ready-to-install weldments. We operate in meticulously controlled environments, including Class 100 cleanrooms, to maintain the highest standards of purity. By combining welding, assembly, and testing into one seamless process, we cut out unnecessary hand-offs and ensure that every weldment is perfectly prepared for production.
Applications and Use Cases
Our weldments are utilized in a diverse array of industries that prioritize precision, cleanliness, and strength. Thanks to our extensive experience with complex assemblies, we can support everything from heavy industrial systems to high-purity process applications.
Industrial and Structural Fabrication
Weldments offer the strength, precision, and durability needed for fluid handling and equipment assemblies. Each weldment is meticulously engineered for strength and dimensional accuracy, ensuring they operate smoothly even under heavy loads.
Process and Pressure Systems
For our clients in the semiconductor and life sciences sectors, we craft weldments for tanks, vacuum chambers, and other sealed systems. These assemblies demand precise joints and surface finishes to maintain purity and prevent leaks. With our certified welders and cleanroom fabrication areas, we meet the stringent standards required for high-pressure and vacuum environments.
Turn-Key Integration
Many of our clients rely on Axenics for turn-key solutions that seamlessly integrate multiple weldments into complete assemblies. By managing design support, fabrication, inspection, and testing all in-house, we provide ready-to-install systems that streamline the entire process.
Material Innovations and Emerging Technologies in Weldment Fabrication
We stay abreast of the ever-changing landscape of the industries we serve, especially when it comes to the materials and techniques we use in weldment fabrication. We’re constantly pushing the envelope on weldment performance by exploring new materials and fabrication methods. Our team of engineers is always on the lookout for the latest alloys, filler metals, and composite materials that can boost strength, resist corrosion, and enhance thermal stability. Thanks to these innovations, we can create weldments that stand strong even in the toughest conditions: think extreme temperatures, high pressure, and harsh chemicals.
On top of that, cutting-edge welding technologies are transforming the way we produce high-purity assemblies. With the help of robotic welding systems, laser-based tools, and additive manufacturing techniques, we’re able to achieve greater precision, consistency, and speed in every project. These advancements help us minimize variability, cut down production times, and deliver weldments that are precisely accurate and reliable.
By merging advanced materials with the latest fabrication technologies, Axenics is committed to providing weldment solutions that not only meet today’s demands but also anticipate the challenges of tomorrow’s manufacturing landscape.

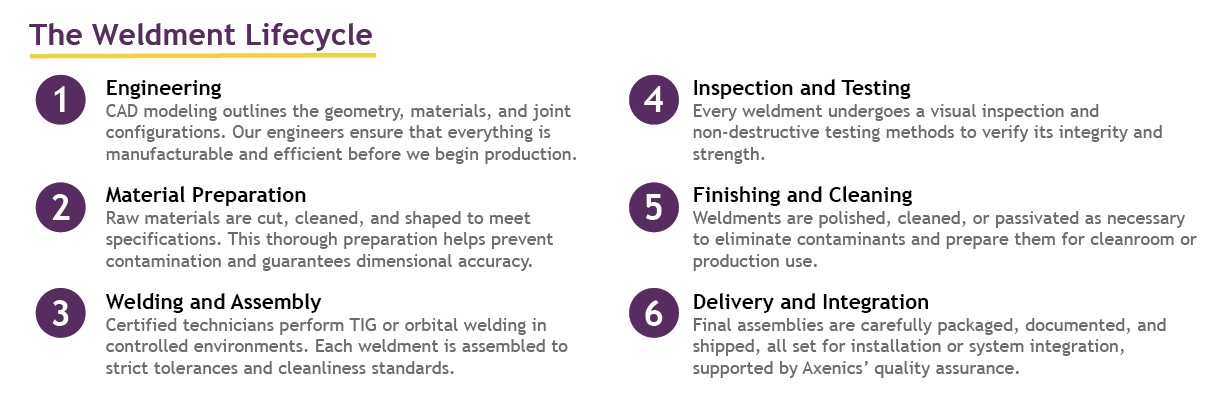

The Weldment Process at Axenics
Our weldment process begins with collaborative design and digital simulations to make sure everything is feasible for manufacturing. We carefully prepare materials, set up joints, and adjust welding parameters to achieve the best precision and consistency. Each weldment goes through rigorous inspections, including helium leak tests and non-destructive testing. This careful approach guarantees that every finished weldment meets strict performance and cleanliness standards.
Choosing the right welding services provider
There are many reasons why companies need to invest in welding services. As with any investment, it’s important to do your research to make sure you’re getting the best value for your dollar. It’s also important to understand that various factors can influence the cost of welding services.
The more experienced, better equipped, and properly staffed a welding services provider is, the better they should be able to minimize the overall costs. Therefore, when shopping for a welding services provider, you should determine what systems each organization has in place to deliver the highest quality products in a timely and cost-effective manner.
Welding is a time-consuming process, regardless of the welder’s experience. Time, therefore, is often the most expensive factor to consider. Of course, a more experienced and skilled welder will be faster by default and is more likely to find efficient ways to save time, which will ultimately impact the overall cost and quality.
Some examples of processes included in welding services where time is a significant factor include:
- Preparing joints
- Preparing materials to be welded (such as removing oils, blasting, etc.)
- Assembling joints
- Preheating joints when necessary
- Tack-up
- Positioning
- Welding (time will vary depending on how automated the process is)
- Removing slag when necessary
- Removing splatter
- Inspecting welds and joints
- Changing electrodes
- Moving welders from one location to another
- Changing welding machine settings
- Repairing/reworking defective welds
Because the cost of welding services can vary depending on the time required for each of the processes listed above, as well as the materials and equipment used, it’s best to work with an organization like Axenics that specializes in providing cost-efficient and high-quality welding services.
Material Innovations in Weldments
The evolution of material science plays a pivotal role in advancing weldment performance. We continuously explore innovative alloys, specialized filler metals, and even composite materials to push the boundaries of what weldments can achieve. These material innovations lead to weldments with enhanced strength, improved corrosion resistance, and superior thermal stability.
Our engineers leverage these breakthroughs to create weldment solutions that cater to the demanding environments of the semiconductor and medical industries. By embracing the latest material developments, we can offer weldments that are both versatile and highly durable, ensuring optimal performance across a wide range of applications.
Emerging Trends and Technologies in Weldment Fabrication
Rapid technological advancements are shaping the future of weldment fabrication. Modern techniques such as robotic welding, laser-based systems, and additive manufacturing are revolutionizing the way weldments are produced. These emerging technologies can help achieve unparalleled precision, faster production cycles, and enhanced consistency in weldment quality.
Lifecycle Management and Maintenance of Weldments
Effective lifecycle management is essential to ensure that every weldment maintains its structural integrity and performance over time. At Axenics, we emphasize proactive maintenance strategies and periodic inspections designed to extend the lifespan of weldments. Our approach includes:
Regular Inspections
Utilizing advanced non-destructive testing methods such as ultrasonic and X-ray inspections, our team routinely evaluates weldments for signs of wear, corrosion, or any deviations from quality standards.
Preventive Maintenance Programs
We develop tailored maintenance schedules that address the specific stresses and environmental factors impacting each weldment. This proactive approach minimizes downtime and prevents costly repairs.
Repair and Rework Protocols
In instances where weldments require attention, our technicians apply precise repair techniques, ensuring that any rework seamlessly integrates with the existing structure without compromising the integrity of the weldment.
Lifecycle Data Tracking
By monitoring weldment performance over time, we can predict potential issues before they occur, enabling smarter, data-driven decisions for maintenance and replacement.
This comprehensive lifecycle management strategy not only secures the durability of weldments but also delivers enhanced safety and reliability for critical applications.
Customized Welding Solutions and Specialty Weldments
Axenics prides itself on offering customized welding solutions that address unique project requirements, ensuring that each weldment is optimized for its specific application. Our customized approach includes:
Tailored Fabrication
Leveraging advanced CAD and simulation tools, we work closely with our clients to design weldments that meet stringent performance criteria. Whether it’s for medical devices or semiconductor applications, our solutions are engineered to exact specifications.
Specialty Weldments for Complex Challenges
For projects that demand non-standard geometries or materials, we develop specialty weldments that are crafted using innovative techniques and materials. This customization ensures that each weldment performs reliably under its unique operational stresses.
Material and Process Optimization
We collaborate with clients to select the ideal materials and welding processes that align with their performance and cost requirements. This may involve choosing specific filler metals or employing advanced welding techniques to achieve the desired strength and durability.
Collaborative Problem-Solving
Our team of experienced engineers and certified welders work side-by-side with clients to troubleshoot challenges and refine weldment designs. This partnership ensures that the final product not only meets industry standards but also exceeds customer expectations. By offering customized welding solutions and specialty weldments, Axenics provides an unmatched level of flexibility and expertise, ensuring that every project is executed with precision and tailored to deliver optimal performance.
FAQs
We fabricate weldments from ⅛ inch to 6 inches in diameter, with larger sizes available on request. Stainless steels and various thermoplastics are standard. We also evaluate specialty alloys based on application. TIG and orbital welding are primary. Process selection depends on material, joint design, and cleanliness requirements. Yes. We perform autogenous TIG welding where suitable, typically for thinner sections and high-purity joints. Work is performed in controlled environments, including Class 100 cleanrooms. Parts are cleaned, inspected, and packaged to prevent contamination. CAD modeling, precision fixturing, and validated weld procedures maintain alignment and repeatability. Yes. We handle design support, fabrication, assembly, inspection, and final testing under one roof. We streamline joint counts, apply CNC bending with orbital welding, and optimize cut lengths to reduce scrap and rework. Yes. We engineer to specification, select appropriate filler metals and processes, and develop fixtures for non-standard geometries.What weldment sizes does Axenics produce?
Which materials do you work with?
Which welding processes are used for weldments?
Do you perform autogenous welding?
How do you ensure weldment cleanliness for high-purity use?
How do you control dimensional accuracy in complex geometries?
Do you offer turn-key weldment solutions?
How do you minimize material waste and cost?
Can you support specialty or custom weldments?
